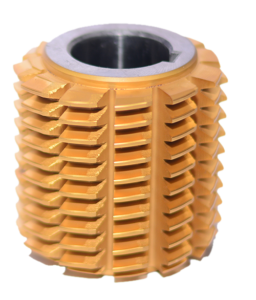

HOBS

The following types of hobs are available:

  • SPUR AND HELICAL GEAR HOBS
  • PRE-SHAVING GEAR HOBS
  • PRE-GRINDING GEAR HOBS
  • STRAIGHT AND INVOLUTE SPLINE HOBS
  • SERRATION HOBS
  • SPROCKET HOBS
  • WORM GEAR HOBS
  • TIMING BELT HOBS
  • SPECIAL HOBS



BASIC PARAMETERS:

Range:0.1 Module to 40 Module and 64 DP to 0.8 DP
Start: Single or Multi Start
Accuracy: AA, A, B & C (as per DIN 3968)
Forms : Non-Topping, Semi-Topping, Topping, finishing, pre-shaving, pre-grinding, with or without protuberance, full fillet etc.
Material : M-2,M35, ASP 30 etc.

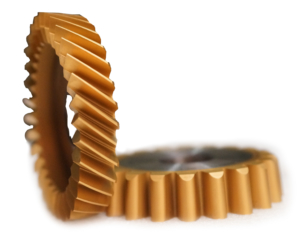

GEAR SHAPER CUTTERS

Types:

  • DISK TYPE SHAPER CUTTERS
  • SHANK TYPE SHAPER CUTTERS
  • HUB TYPE,DEEP COUNTERBORE TYPE SHAPER CUTTERS

BASIC PARAMETERS:

Range : 0.3 Module to 14 Module for Spur and Helical Gears.
Profile modifications : chamfering, topping, protuberance, flat or fillet roots
Accuracies : AA, A, B, C to DIN 1829.
Material : M2, M35, ASP 30 etc.

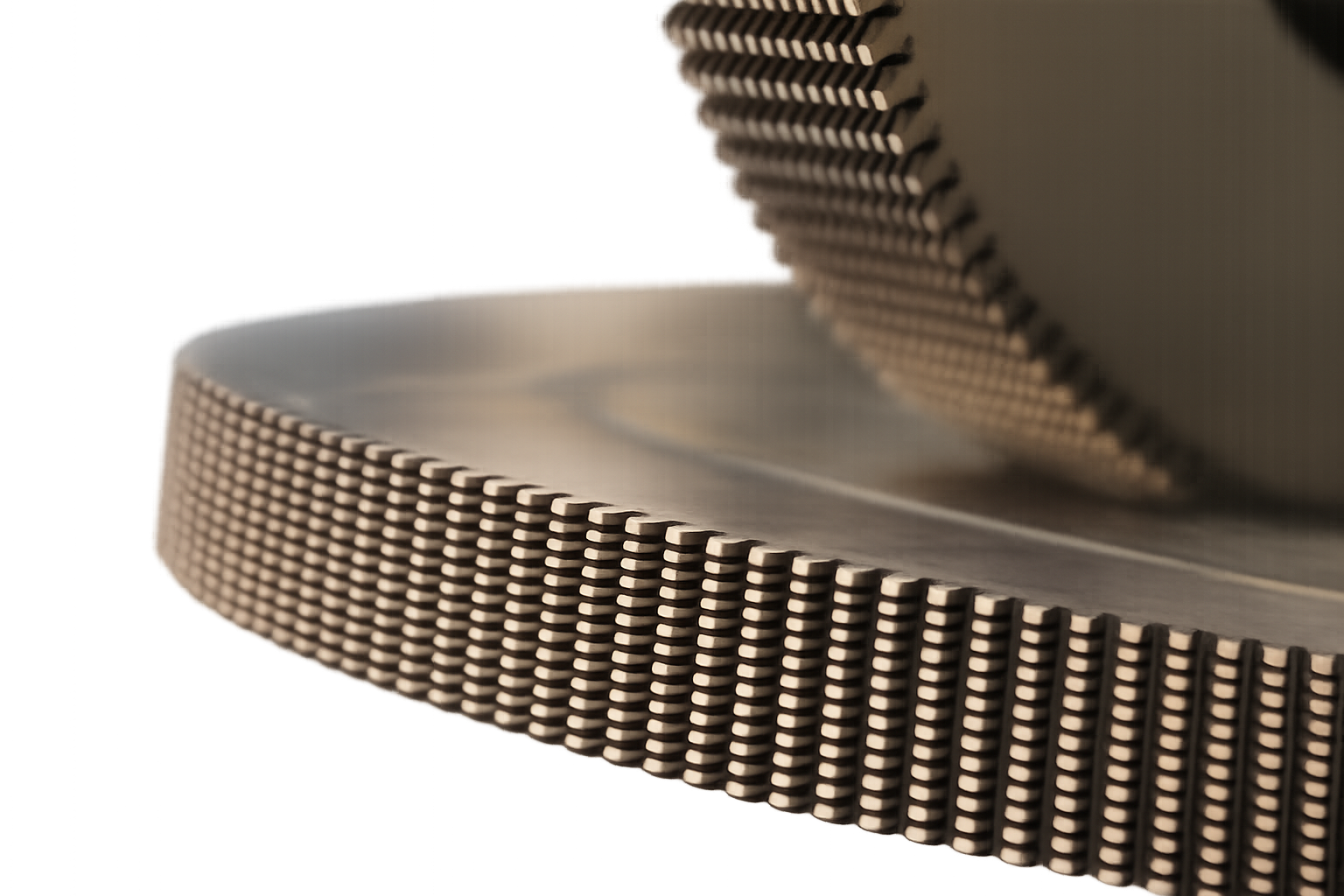

GEAR SHAVING CUTTERS

Types:
Conventional, diagonal & underpass.

RANGE:
0.8-8 Module and 30-3 DP
170 mm to 260 mm PCD.

MATERIAL:
M2, M35, ASP 30 etc.

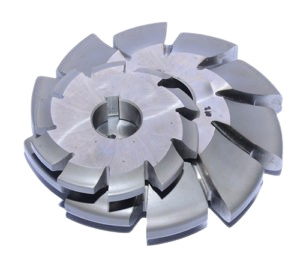

GEAR MILLING CUTTERS

TYPES:

INVOLUTE GEAR CUTTERS-DP and Module series in the range 0.3 Module to 55 Module & 64 DP to 0.5 DP.

  • SPLINE MILLING CUTTERS
  • SPROCKET MILLING CUTTERS

Form Relieved Milling Cutters for involute and special forms.

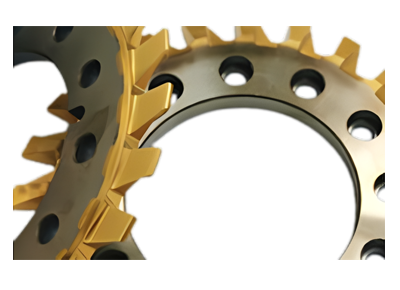

CONIFLEX CUTTERS

Coniflex Cutters For Straight bevel Gears

These are used for cutting Straight bevel gears.
Gears cut by these cutters can be crowned in a lengthwise direction.

We supply these cutters for following machines

  • Coniflex G104/102 type
  • Coniflex G114 type

They can be supplied in M-2 and ASP2023 material with various coatings like TIN or TiALN.
